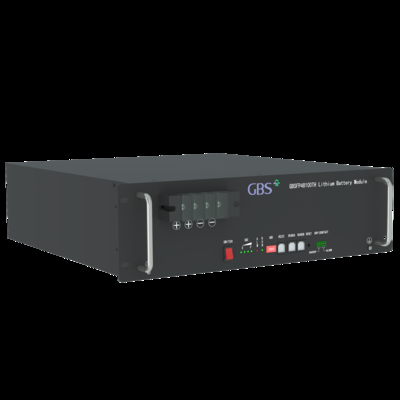

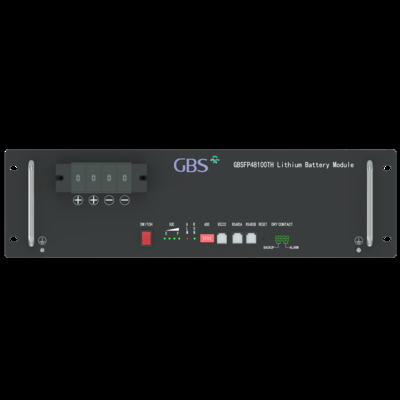

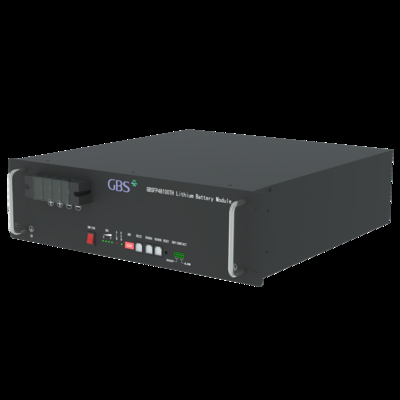

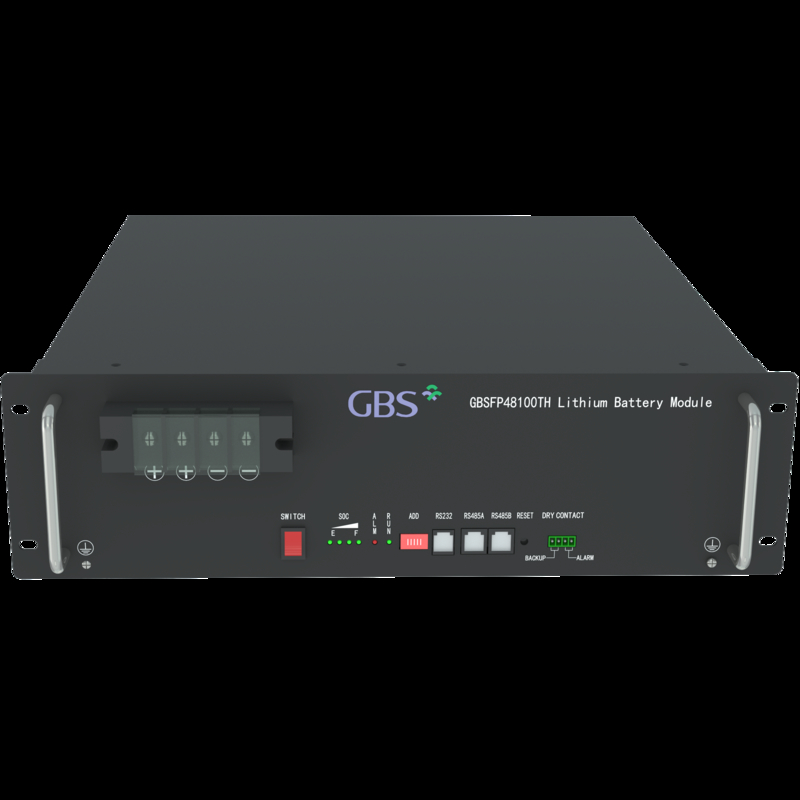

3U Cabnet Rechargeable Lifepo4 Battery Module 48V100Ah (16S)For Telecommunication

Nome da marca:	GBS
Número do modelo:	GBSFP48100T
MOQ:	1 pcs
preço:	negotiable
Capacidade de abastecimento:	2000000 PCs por ano

Informações pormenorizadas

Lugar de origem:

China

Certificação:

CE, UL, IEC, TUV,PONY,MA,ISO9001, ISO14001, OHSAS18001

Detalhes da embalagem:

Mercadorias perigosas embaladas em caixas de madeira

Habilidade da fonte:

2000000 PCs por ano

Destacar:

Descrição do produto

3U Cabinet Rechargeable LiFePO4 Battery Module 48V 100Ah For Telecommunication

Basic Performance

Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds
Good performance under high temperature, it could work under 65°C temperature. The battery structure is safe and reliable
Good performance under low temperature: discharge capacity decreases to over 78% under 0°C and discharge capacity decreases to over 70% under -20°C
Excellent safety performance: Features a one-way safety valve that releases gas and heat when internal pressure becomes too high, preventing burning and explosion
Long cycle life: Discharge capacity remains over 80% after 2000 cycles at 80% depth of discharge (DOD)
Fast charging capability: Charges to 80% within 20 minutes and fully charges in 2-3 hours
Cost-effective solution with low maintenance requirements
Environmentally friendly: No pollution during manufacture or usage

Installation & Usage Guidelines

Verify all components are present upon unpacking and carefully review the operation manual
Avoid short circuits, overcharging, and over-discharging the battery
For first use, fully charge the battery before initial discharge
Do not remove the factory-installed plates and strips from the battery pack
Standard voltage range: 12.8V-13.2V (verify before installation)
Always use the Battery Management System (BMS) to protect individual cells from overcharge/discharge
Battery connectors use rivets or screws for secure attachment
Use copper components for inter-battery connections, secured with hydraulic pressure pliers (screw-fixed connections available upon request)
Only use chargers approved by our company specifically designed for our lithium batteries

Failure to follow these guidelines may void warranty coverage and reduce battery lifespan

Safety Assurance Requirements

For optimal safety and performance, please consult with our technical team regarding:
